Engineered for rigorous validation of UPS systems, PV inverters, microgrids, EV power convertors, and 400Hz aerospace systems. Discover technical selection frameworks, market trends, and high-efficiency dual-mode AC/DC electronic load banks from Adaptive Power Systems.
Modern electrical grid architectures, high-frequency switching converters, and wide-bandgap (SiC/GaN) power topologies demand sophisticated load emulation that traditional passive resistor banks cannot deliver. Below is an expert breakdown of technical evaluation metrics for global sourcing managers and test engineers.
Modern AC Electronic Loads must simulate leading (capacitive) and lagging (inductive) power factors from 0.00 to 1.00 continuously. This is crucial for verifying UPS inverter output stability under non-unity power factor conditions in compliance with IEC 62040-3 and IEEE 1547 microgrid grid-tied standards.
Rectified bridge loads and server switch-mode power supplies draw non-sinusoidal current pulses. Choosing an AC Electronic Load capable of programmable Crest Factors (up to 3.0 or higher) ensures your test setup faithfully replicates non-linear current spikes without early over-current shutdowns.
Procurement teams achieve maximum ROI when a single test rack handles both AC utility/inverter output and DC bus discharge testing. Dual-mode AC+DC electronic loads remove the capital expense of buying separate dedicated AC and DC load instruments for hybrid power conversion R&D.
From compact benchtop evaluation units to scalable multi-cabinet high-power load systems up to 22.5 kVA/kW per chassis, APS delivers industrial-grade stability, fast transient response, and seamless automation interfaces.
The industry benchmark for combined AC and DC programmable load testing. Designed specifically for UPS systems, PV inverters, rectifiers, and AC power source stress testing.
Engineered for extreme high-power applications including EV traction battery pack discharge, large DC microgrids, and high-voltage DC conversion systems.

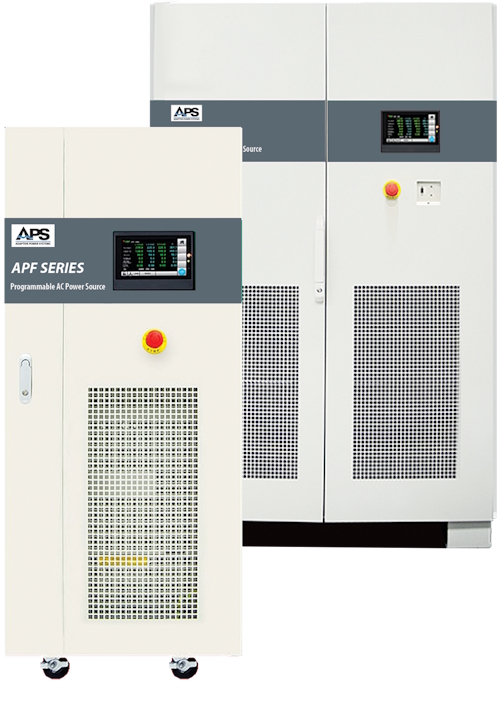

Complement your AC Electronic Loads with precise, programmable single and three-phase AC power sources and solid-state frequency converters.

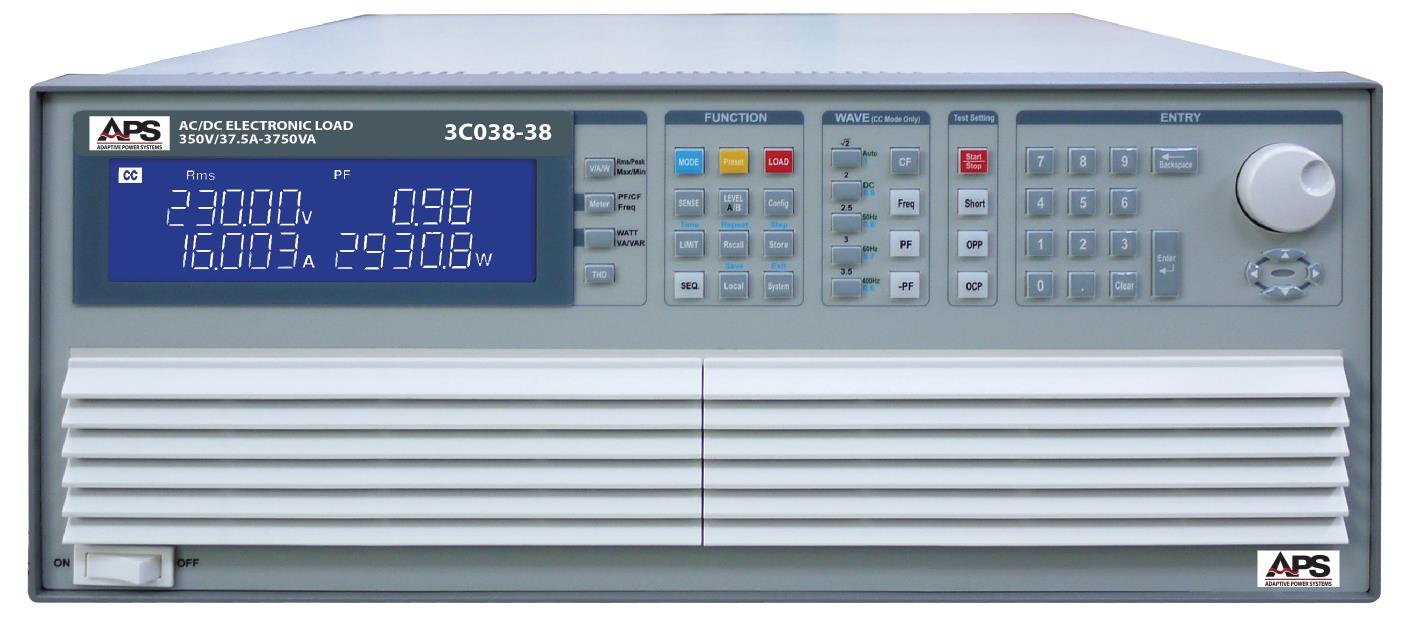

Testing uninterruptible power supplies (UPS), solar inverters, aircraft power converters, and AC generators requires dynamic control over current waveforms, phase angles, and harmonic distortion. The APS 3C Series Programmable AC & DC Electronic Loads offer unmatched versatility by integrating both AC and DC load testing capabilities inside a single rugged instrument chassis.
Featuring operating frequencies from 45Hz to 440Hz, the 3C Series provides comprehensive Constant Current (CC), Constant Resistance (CR), Constant Power (CP), and Linear Constant Current modes. With standard GPIB, RS-232, USB, and LAN interfaces, this series drops directly into automated test equipment (ATE) architectures worldwide.
As electric vehicle traction systems move from 400V to 800V and 1000V architectures, and grid-scale energy storage systems (BESS) expand globally, testing facilities demand loads capable of handling immense energy densities safely. Adaptive Power Systems high-power electronic load banks deliver scalable load absorption for both DC battery systems and AC inverter networks.
With Master/Slave paralleling control, test managers can start with a standard 60 kW module and scale up to multi-hundred kilowatt test bays as testing demands grow. Integrated digital signal processors continuously monitor internal thermal performance, reverse polarity protection, and over-voltage thresholds to safeguard high-value devices under test (DUT).
A closed-loop power testing environment requires precise control over both the input AC voltage source and the output AC/DC load. Adaptive Power Systems manufactures the complete equipment chain: programmable AC power sources (APF, CFS, FC Series) to feed your power converter, and programmable AC electronic loads (3C Series) to evaluate the converter's output dynamic stability.
Whether verifying compliance with MIL-STD-704 aircraft electrical standards, testing DO-160 avionics immunity, or performing burn-in stress testing on commercial power supplies, combining APS sources, loads, and precision digital power analyzers guarantees NIST-traceable measurement accuracy.
Global power test procurement is undergoing a paradigm shift driven by decarbonization, high-density AI data centers, and wide-bandgap semiconductors. Technical buyers must align their capital expenditure with these emerging industry trajectories.
Traditional AC Electronic Loads convert absorbed energy entirely into heat via fan-cooled dissipation banks, incurring heavy HVAC cooling costs. The industry is rapidly transitioning toward Regenerative AC Electronic Loads that invert absorbed power back onto the local facility grid with >92% energy recovery efficiency. This trend dramatically lowers operational expenditure (OpEx) during long-duration endurance and burn-in testing.
Hyperscale data centers supporting AI training clusters demand server power supplies operating at 3kW to 10kW+ per unit with 80 PLUS Titanium efficiency requirements. Test systems require AC Electronic Loads capable of simulating rapid step-load dynamic transients with slew rates exceeding tens of Amperes per microsecond, verifying PSU voltage hold-up times under sudden compute load spikes.
Vehicle-to-Grid (V2G) technology transforms electric vehicles into distributed energy resources. Future-proof AC Electronic Loads must support seamless four-quadrant operation, transitioning instantly between acting as an AC load (absorbing energy from the vehicle inverter) and an AC source (delivering power to the vehicle charger) to emulate real-world microgrid interactions.
Silicon Carbide (SiC) and Gallium Nitride (GaN) switching components operate at significantly higher frequencies than legacy Silicon IGBTs. Sourcing managers must prioritize AC Electronic Loads featuring ultra-low internal parasitic inductance to prevent voltage overshoot ringing during fast dynamic switching stress tests.
Use this engineering matrix to match your specific device under test (DUT) with the ideal electronic load operating mode.
| Load Mode | Electrical Behavior | Primary Application / DUT | Key Sourcing Parameter |
|---|---|---|---|
| Constant Current (CC) | Draws constant programmed RMS current regardless of input voltage fluctuations. | UPS output regulation, AC power supply burn-in, transformer load capacity. | RMS current accuracy & frequency bandwidth. |
| Constant Resistance (CR) | Simulates linear resistive load bank; current scales proportionally with voltage. | General power converter functional check, startup current verification. | Resistance range & resolution (Ohms). |
| Constant Power (CP) | Adjusts current draw inversely with voltage to maintain constant VA/Watt absorption. | PV inverter MPPT tracking verification, battery discharge profiling. | Power loop control speed & headroom. |
| Rectified Load Mode | Emulates non-linear diode bridge rectifier with selectable Crest Factor (CF). | Switching power supplies, LED drivers, commercial AC line equipment testing. | Peak current limit & Crest Factor adjustment range. |
| Phase Angle / PF Mode | Introduces programmable phase shift between AC voltage and current waveforms. | Solar grid-tie inverter anti-islanding test, inductive motor drive simulation. | Power Factor resolution (0.01 steps) & phase accuracy. |
When testing non-linear loads such as diode bridge rectifiers or switching power supplies, peak current requirements often exceed RMS current values by 3 to 4 times. An AC Electronic Load must be sized not only for continuous RMS power (VA/W) but also for peak current capability and maximum Crest Factor support (up to 3.0 or higher) to avoid waveform clipping and over-current protection trips during testing. Explore 3C Series Crest Factor Specs.
Conventional AC Electronic Loads dissipate absorbed electrical energy as heat using internal resistive networks and fan-cooled power semiconductor stages. Regenerative AC Electronic Loads invert absorbed AC electrical energy back into the local facility grid with efficiency levels exceeding 90-95%, drastically lowering HVAC cooling costs, operational expenditure, and carbon footprint during high-power burn-in tests. Ask an engineer about regenerative options.
Yes. The APS 3C Series programmable AC Electronic Loads feature advanced phase synchronization and reactive current programming capable of adjusting the Power Factor (PF) from 0.00 to 1.00, supporting both inductive (lagging) and capacitive (leading) load emulation across wide frequency ranges (45Hz to 440Hz). Review 3C Series AC/DC Load specifications.
The 3C Series incorporates fast digital signal processing (DSP) controls capable of handling short-duration peak current surges up to 3 times the continuous RMS rating. Built-in transient waveform profiling allows test engineers to simulate cold-start, motor stall, and transformer saturation conditions accurately without false overload tripping.
Adaptive Power Systems AC Electronic Loads include comprehensive hardware protection against Over Power (OPP), Over Current (OCP), Over Voltage (OVP), Over Temperature (OTP), and Reverse Phase Connection. All units are calibrated in ISO/IEC accredited facilities with NIST-traceable documentation. Read about our Compliance Standards.
APS AC loads feature standard SCPI command sets over USB, RS-232, GPIB (IEEE-488), and LAN (Ethernet) interfaces. Standard LabVIEW, Python, and C++ drivers enable seamless integration into automated test environments (ATE) with real-time telemetry streaming for high-throughput factory lines. Download APS Instrument Control Software.
Whether you require a standard 3C Series AC/DC load, a high-power racked system, or a complete grid-simulation test bay, Adaptive Power Systems application engineers are ready to assist. Contact us today for personalized technical sizing and factory pricing.
