High-efficiency solid state frequency converters, programmable single/three-phase AC power supplies, and turnkey IEC EMC compliance testing solutions engineered for international manufacturing and test labs.
Adaptive Power Systems provides advanced PWM switch-mode solid-state frequency changers designed for critical product testing, export manufacturing grid conversion, and military avionics simulation.
Whether testing 400Hz commercial avionics, 50Hz/60Hz export industrial electronics, or running automated IEC compliance sweeps, our scalable architecture delivers clean power, minimal total harmonic distortion (THD), and maximum uptime worldwide.
From compact 500 VA bench units to high-capacity 150 kVA parallel cabinets, select the platform optimized for your laboratory or factory floor.
Economical single-phase frequency changers with simple panel controls and high-visibility LED displays for utility power conversion.
Compact 2U/3U programmable AC and DC sources delivering low-noise power for general R&D, quality control, and production ATE lines.
Versatile 1, 2, and 3-phase output AC/DC sources built for multi-region product validation, avionics (400Hz), and solar inverter testing.
High-power industrial cabinets featuring touch-screen interfaces, designed for facility grid conditioning and heavy-duty product burn-in.
Turnkey compliance test racks for IEC 61000-3-2 harmonics, IEC 61000-3-3 flicker, and IEC 61000-4 immunity standards testing.
Compare key output specifications across our solid-state converter platforms to determine the appropriate system for your DUT (Device Under Test).
| Series Platform | Phase Output | Power Range | AC Voltage Window | Frequency Range | Key Applications |
|---|---|---|---|---|---|

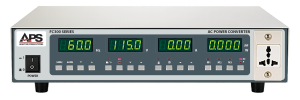

| FC300 Series | 1-Phase | 500 VA – 1,000 VA | 0 - 310 Vrms | 40 Hz – 450 Hz | Benchtop export power conversion, small appliance test |
| CGS100 Series | 1-Phase | 500 VA – 4,000 VA | 0 - 310 Vrms / 420 Vdc | DC, 40 Hz – 500 Hz | Automated production test lines, R&D engineering benches |
| CFS300 Series | 1 / 2 / 3-Phase | 3,000 VA – 6,000 VA | 0 - 300 VLN / 520 VLL | 40 Hz – 1,000 Hz | Avionics 400Hz testing, 3-phase industrial electronics |

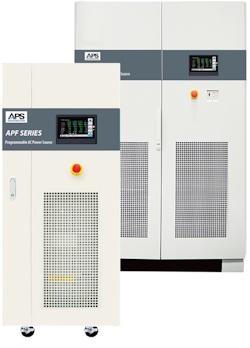

| APF Series | 1-Phase / 3-Phase | 10 kVA – 150 kVA | 0 - 310 VLN / 537 VLL | 45 Hz – 500 Hz / 840 Hz | Factory floor grid emulation, high power facility conversion |

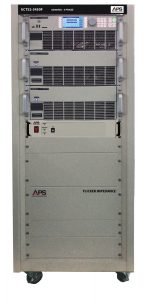

| ECTS Systems | 1-Phase / 3-Phase | 6 kVA – 60 kVA | 0 - 400 VLN / 690 VLL | DC, 15 Hz – 1,200 Hz | IEC 61000 regulatory pre-compliance & full compliance labs |
Modern pulse-width modulation (PWM) switch-mode technology ensures ultra-high efficiency, low heat output, and whisper-quiet operation in compact footprints.
Reproduce precise 400Hz fixed or variable frequencies to satisfy rigorous MIL-STD-704 and RTCA/DO-160 commercial aviation power testing specifications.
Large LED readouts and high-resolution color touch screens enable quick set-point adjustments, transient creation, and remote GPIB/USB/LAN control.
Direct access to factory application engineers and certified international service centers ensures smooth system commissioning and calibration anywhere.
APS solid-state frequency changers cover customizable frequency bands ranging from DC to 1200 Hz. They easily convert local utility grids (50Hz or 60Hz) to match export target markets or 400Hz aviation requirements.
Yes. Platforms such as the CGS100, CFS300, and APF Series offer dual-mode output capability, allowing engineers to switch between pure AC sine waves, DC bias voltages, or combined AC+DC test waveforms from a single instrument.
The ECTS Series performs complete pre-compliance and full compliance testing for IEC 61000-3-2 (Harmonics), IEC 61000-3-3 (Flicker), and IEC 61000-4 series Immunity standards (including voltage dips, short interruptions, and frequency variations).
Benchtop units (FC300, CGS100) are typically maintained in stock for rapid dispatch. High-power cabinet systems (APF3000, ECTS) are built and calibrated to order with typical lead times of 4 to 6 weeks. Fast-track engineering is available upon request.
Need guidance choosing between single-phase and three-phase platforms? Our technical application team is available to assist with power sizing, custom options, and immediate pricing.
