Adaptive Power Systems provides dedicated, robust Windows-based Graphical User Interface (GUI) software suites designed to streamline power system development, quality verification, and automated manufacturing test (ATE). From single-bench operational control to multi-channel ratiometric data logging, APS software unlocks the full potential of your power hardware.
Full control over programmable DC power supply parameters, protective limits, dynamic output ramps, and high-precision digital metering displays.
Command modular multi-channel load mainframes or high-power single chassis loads with dynamic transient stepping and battery discharge profiles.
Advanced AC/DC loading controls for UPS, PV inverter, and grid-tied equipment evaluation with customizable crest factor and power factor settings.

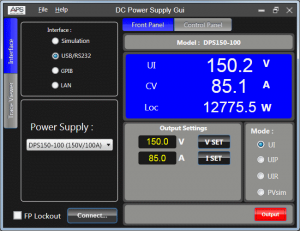

The APS DC Power GUI provides engineering teams with an intuitive control panel for setting voltage, current compliance, and output enable status. Designed for rapid laboratory verification and prolonged burn-in test sequences.

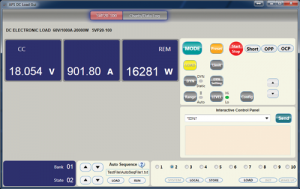

The APS DC Load GUI simplifies complex test procedures by allowing simultaneous management of up to eight modular load modules or continuous control of megawatt-class DC loads. Seamlessly execute battery discharge curve logging and automated pulse loading.

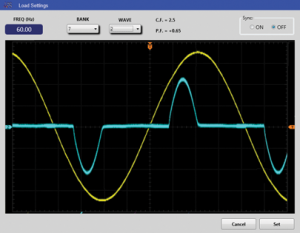

The APS AC Load GUI provides specialized control screens for active AC loading, variable power factor emulation (0.0 to 1.0 leading/lagging), and non-linear peak current wave shaping, critical for testing UPS systems and power rectifiers.
Verify hardware model compatibility with APS control GUIs and LabVIEW ATE drivers below.
| APS Hardware Series | DC Power GUI | DC Load GUI | AC Load GUI | Supported Interfaces |
|---|---|---|---|---|
| DDP & DPS Series Programmable DC Power Supplies | ✔ Included | — | — | USB, RS232, LAN, GPIB |
| 4 Series Modular Electronic DC Loads | — | ✔ Included | — | USB, RS232, LAN, GPIB |
| 5L, 5P & 5V Series Programmable DC Loads | — | ✔ Included | — | USB, RS232, LAN, GPIB |
| 5VPxC Series High Power DC Loads (up to 60kW+) | — | ✔ Included | — | USB, RS232, LAN, GPIB |
| 3A Series Modular AC Electronic Loads | — | — | ✔ Included | RS232, GPIB |
| 3B, 3C & 3D Series High Power AC & DC Loads | — | — | ✔ Included | RS232, USB, LAN, GPIB |
For research facilities and enterprise test software engineers building automated test environments (ATE), Adaptive Power Systems offers comprehensive National Instruments LabVIEW instrument drivers, standard SCPI command references, and custom API support.
Need specific software drivers, DLL libraries, or guidance on configuring multi-instrument ATE racks?
Global Application Engineering Desk
Direct technical assistance for overseas procurement & engineering teams.
Connect with our global technical team for complete software installers, LabVIEW driver packages, and detailed product specifications tailored to your lab setup.
