Engineered to exact client specifications. Explore our turnkey testing platforms supporting mechanical, electrical, pneumatic, powertrain, and environmental validation standards.
Dual-column high-precision load frame integrated with digital closed-loop strain feedback for real-time tensile, compression, and peel testing across polymer and alloy specimens.

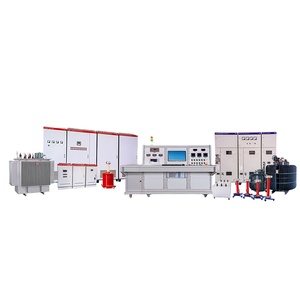

High-voltage automated motor validation platform featuring ultra-fast transient dynamic loading, multi-channel thermal logging, and power efficiency mapping.

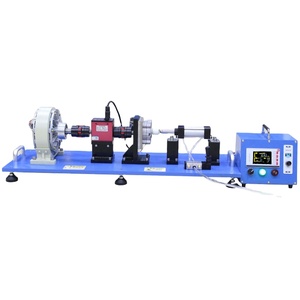

Automotive performance testing rig equipped with low-inertia eddy-current dynamometers, torque transducers, and automated CANbus telemetry acquisition software.

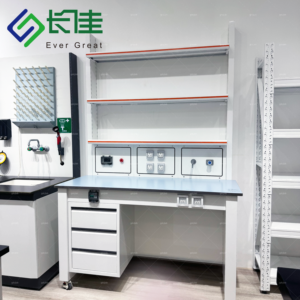

Heavy-duty modular workstation engineered with chemical-resistant ceramic surfacing, integrated anti-vibration damping, and isolated ESD grounding for clinical labs.

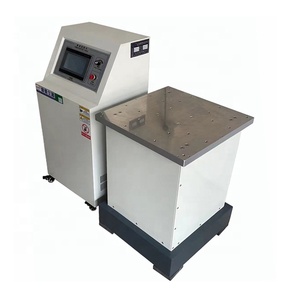

Dual-axis electromagnetic shaker table designed for MIL-STD and IEC compliance testing, featuring sinusoidal sweep, random vibration, and shock pulse profiles.
Industrial educational automation suite combining modular pneumatic logic valves, programmable logic controllers (PLC), and interactive sensor simulation software.

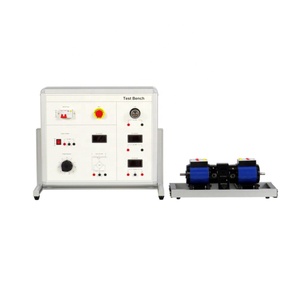

Comprehensive electrical engineering laboratory bench featuring built-in variable AC/DC power supplies, safety isolation transformers, and digital metering racks.

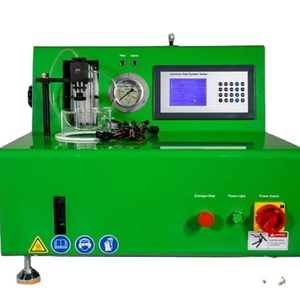

Precision fuel delivery testing unit supporting up to 2500 bar injection pressures, automated piezoelectric pulse timing, and digital volumetric measurement software.
In modern industrial manufacturing, automotive electrification, defense electronics, and vocational education, the demand for custom test benches has evolved from static verification tables into complex, hardware-in-the-loop (HIL) cyber-physical validation systems. As a leading OEM/ODM Test Bench Manufacturer & Factory, our facility bridges the critical gap between high-level engineering specifications and ruggedized, shop-floor deployment. Manufacturing a test bench requires deep domain mastery across multi-physics domain simulation, ultra-precise signal acquisition, regenerative electrical loading, and ergonomic structural design.
Unlike off-the-shelf laboratory equipment, custom OEM/ODM test rigs integrate dynamic real-time OS microcontrollers (RTOS), high-speed EtherCAT fieldbus topologies, and adaptive sensor arrays. This guarantees sub-millisecond control loop response times during high-stress failure mode and effects analysis (FMEA) across automotive powertrains, aerospace 400Hz avionics, and high-pressure fluid dynamics.
The primary imperative for procurement managers and chief technical officers (CTOs) lies in securing scalable, future-proof architecture. When specifying a custom test bench factory partner, enterprise buyers must evaluate the vendor's E-E-A-T (Experience, Expertise, Authoritativeness, and Trustworthiness) indicators: certified ISO 9001/17025 calibration pipelines, embedded firmware customization capabilities, and proven longevity under multi-shift production line utilization.
Combining 20+ years of power instrumentation engineering with comprehensive end-to-end custom metal fabrication, software architecture, and international compliance verification.
From structural CAD drafting and thermal management design to custom PCB layout and firmware programming, our in-house R&D engineering team co-develops solutions directly with your technical leads.
Integrating solid-state AC power sources, regenerative DC electronic loads up to 150 kVA, and high-frequency matrix switching to simulate real-world grid anomalies and transient battery discharge profiles.
Every test bench manufactured in our facility undergoes rigorous factory acceptance testing (FAT), traceably calibrated against NIST/ISO standards, ensuring full CE, UL, and MIL-STD test compliance.
Review core architecture parameters across our primary custom test rig engineering series to determine optimal alignment for your operational test plan.
| Test Bench Platform | Primary Test Application | Control Interfacing | Power & Loading Range | Key Compliance Standards |
|---|---|---|---|---|
| Universal Material Tensile Bench | Rubber, Plastic, Metal Pull & Compression | High-Speed Microprocessor / PC GUI | 0.5 kN to 300 kN Load Cells | ISO 7500-1, ASTM E4, DIN 51221 |
| UHV & Dynamometer Motor Bench | EV Motors, Automotive Powertrains, Engines | CANbus, EtherCAT, LabVIEW API | Up to 150 kVA / 1000 Vdc / 60 kW | IEC 60034-2-1, SAE J1349, CE |
| Electromagnetic Vibration Table | Structural Shock, Resonance & Package Fatigue | Dual-Axis DSP Controller | 5 Hz - 3000 Hz / Up to 50g Acceleration | MIL-STD-810H, IEC 60068-2-6 |
| Pneumatic & Electrical Didactic Bench | Vocational Education, Automation Training | Siemens/Allen-Bradley PLC + Touch HMI | 24 Vdc Control / 0.8 MPa Pneumatic | DIN EN 60742, CE Educational Directive |
| Common Rail Injector Test Bench | Diesel Fuel Injection & Piezo Timing | Embedded Linux Touch Screen | 2500 Bar Injection Pressure | ISO 4020, Euro 5/6 Emission Protocols |
Key technological transformations driving capital expenditure decisions for tier-1 suppliers, R&D centers, and industrial test facilities globally.
Modern high-power electric vehicle (EV) motor dynamometers and battery discharge test benches consume immense electrical energy. Strategic procurement is shifting decisively toward 4-quadrant grid-tied regenerative electronic loads capable of returning over 92% of dissipated energy back to the facility grid.
This shift dramatically lowers operational thermal loads, cuts utility expenditures, and accelerates enterprise ESG compliance targets.
Next-generation OEM test rigs are incorporating embedded machine learning algorithms at the edge. By analyzing high-frequency micro-vibrations, acoustic emissions, and thermal dynamic gradient drift, smart test benches identify mechanical bearing degradation and calibration slip before total component breakdown.
Procurement teams now prioritize test benches featuring native IoT MQTT/OPC-UA protocols for unified cloud telemetry integration.
Monolithic, rigid test benches are being phased out in favor of modular sub-assemblies. OEM buyers require standardized mechanical T-slot aluminium frames, hot-swappable load cartridges, and software-reconfigurable pinouts that allow a single bench to test multiple product SKUs within minutes.
Modular designs drastically shorten setup latency for agile high-mix, low-volume production lines.
Leading R&D facilities demand physical test benches that seamlessly link with cloud Digital Twins (FMI/FMU standards). This allows physical hardware-in-the-loop (HIL) stress testing to be mirrored in real time against mathematical finite element models.
Virtual commissioning speeds up initial Site Acceptance Testing (SAT) while ensuring complete data traceability.
How our manufacturing plant collaborates with your engineering team from initial intent mining to global field commissioning.
In-depth technical consultation analyzing duty cycles, voltage/power envelopes, mechanical tolerances, and regulatory standards (ISO/MIL-STD/IEC).
Full mechanical, thermal, and electrical schematic design using advanced CAD modeling, FEA structural stress analysis, and fluid flow dynamics.
Precision CNC machining, sheet metal enclosures, custom wire harnessing, and custom SCADA software compile inside our clean facility.
100-hour continuous burn-in testing, multi-point sensor calibration against NIST standards, and full safety isolation checks.
On-site installation, system integration, operator safety training, and formal Site Acceptance Testing conducted by qualified field service engineers.
Ongoing annual calibration services, emergency spare parts dispatch, firmware patches, and remote diagnostic helpdesk support.
Clear answers to crucial engineering, customization, lead-time, and logistics questions from our global client base.
Consult directly with our senior application engineers. We will review your test requirements, component envelope, and compliance targets to deliver a turnkey OEM/ODM proposal.
