Explore our curated industrial-grade and bioelectrical impedance analyzers. Engineered for high-frequency circuit evaluation, ultrasonic component inspection, power electronics diagnostics, and advanced body composition measurement.
In modern electronic engineering, medical diagnostics, energy storage evaluation, and material science, electrical impedance analysis serves as a foundational quantitative methodology. An Impedance Analyzer measures complex electrical impedance across varying AC frequencies, resolving total phase angle ($\theta$), resistance ($R$), reactance ($X$), conductance ($G$), susceptance ($B$), inductance ($L$), and capacitance ($C$).
When evaluating global manufacturing plants and exporting entities, B2B procurement leaders must move beyond standard catalog parameter listings. Determining the top 10 impedance analyzer factories requires an exhaustive assessment of signal-to-noise ratio (SNR) stability, phase calibration precision, high-frequency resonance tracking, and firmware adaptability. Leading manufacturing facilities integrate automated calibration rigs compliant with ISO/IEC 17025 standards to eliminate parasitic capacitance and stray lead inductance inherent in high-speed testing setups.
Top Tier factories manufacture instrumentation capable of sweeping from sub-hertz (20 Hz) up to multi-megahertz (120 MHz+) ranges seamlessly without phase lock disruption.
Specialized OEM exporters bifurcate design architectures into Bioelectrical Impedance Analysis (BIA) multi-frequency human segment scanners and high-voltage industrial EIS systems.
Certified exporters guarantee medical CE (MDR), IEC 61010-1 electrical safety compliance, and strict EMC shielding against high ambient magnetic field interference.
To assist global procurement directors, quality assurance managers, and systems integration engineers in shortlisting premier manufacturing vendors, the table below consolidates critical engineering metrics across primary impedance measurement classes.
| Equipment Category | Primary Sweep Range | Basic Phase Accuracy | Target Sector / Application | Key OEM Selection Benchmark |
|---|---|---|---|---|

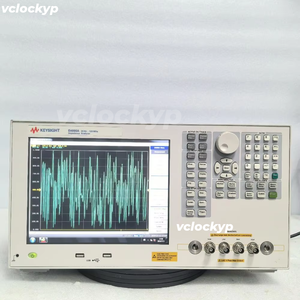

| High-Frequency Industrial Bench | 20 Hz – 120 MHz | ±0.05° | Piezoelectric ceramics, RF components, semiconductor testing | Ultra-fast auto-balancing bridge & low contact resistance fixtures |

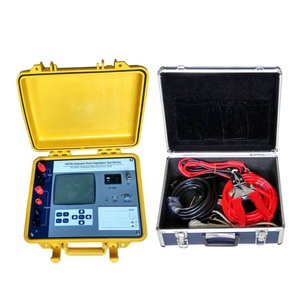

| Heavy Electrical Motor Tester | 45 Hz – 1 kHz (600V AC) | ±0.2° | Substation transformers, industrial AC motors, power grids | High dielectric isolation, surge protection, dynamic load immunity |

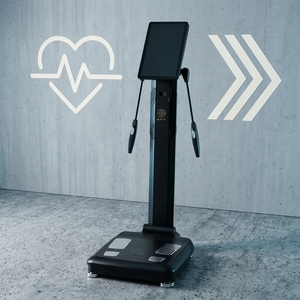

| Medical & Commercial 8-Point BIA | 1 kHz – 1 MHz Multi-Freq | ±0.1% Bio-Z | Clinical body composition, segmental muscle/fat analysis | 8-electrode tactile contact resistance compensation & DEXA correlation |
| Portable Ultrasonic Component Scanner | "1 kHz – 500 kHz±0.1° | Medical transducer maintenance, ultrasonic welder tuning | Handheld ergonomics, instant anti-resonance phase curve plotting | |
| Electrochemical EIS Battery Tester | 10 μHz – 100 kHz | ±0.1° | EV Lithium-ion pack SOH/SOC diagnostics, fuel cell stacks | Multi-channel parallel testing & Cole-Cole equivalent circuit fitting |
As industries transition toward electrification, advanced healthcare monitoring, and high-frequency communication networks (5G/6G), impedance analysis equipment is undergoing significant architectural evolutions. Sourcing managers must align with manufacturers actively investing in the following high-value technological developments:
Next-generation industrial impedance analyzers feature embedded AI edge-processors capable of performing real-time Cole-Cole plot interpretation, automated Nyquist plot modeling, and multi-component equivalent circuit parameter extraction without sending raw datasets to external PCs.
In the bioelectrical impedance sector, top exporters are replacing legacy single-frequency 50 kHz systems with 8-electrode multi-frequency (1 kHz to 1 MHz) direct segmental measurement architectures. This innovation allows clinical-grade differentiation between intracellular and extracellular water distribution.
Electric Vehicle (EV) battery pack manufacturing demands rapid non-destructive State of Health (SOH) verification. Leading factories now produce high-throughput Electrochemical Impedance Spectroscopy (EIS) modules capable of testing battery cells under 1000V DC bias conditions during fast-charging cycles.
Engineered with over 20 years of precision measurement mastery, our factory group stands at the forefront of power equipment and electrical impedance analyzer manufacturing. Operating with worldwide independent sales representatives, regional service hubs, and dedicated R&D calibration labs, we close the loop between instrument design, compliance testing, and global supply chain efficiency.
Factory-calibrated fixtures ensuring repeatable precision across global laboratory deployments.
Tailored firmware GUIs, custom frequency band synthesis, and automated SDK integration for ATE lines.
Seamless multi-region export capabilities backed by direct field application engineering teams.
Critical insights addressing technical selection, calibration standard compliance, and OEM export logistics for impedance analysis instrumentation.
While a standard LCR meter measures inductance (L), capacitance (C), and resistance (R) at specific discrete test frequencies (e.g., 100 Hz, 1 kHz, 10 kHz), a dedicated Impedance Analyzer performs continuous frequency sweeps across a broad frequency spectrum (e.g., 20 Hz to 120 MHz). It dynamically plots vector parameters such as magnitude ($|Z|$), phase angle ($\theta$), resonance frequency ($F_r$), and anti-resonance frequency ($F_a$). This continuous curve plotting is essential for evaluating piezoelectric transducers, resonant ultrasonic devices, and complex material dielectric properties.

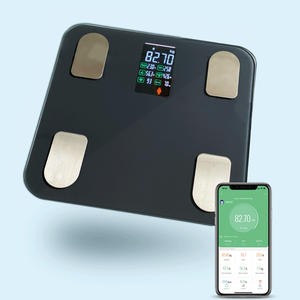

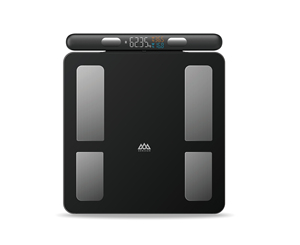

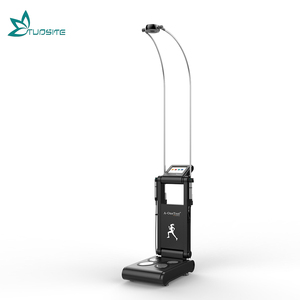

Traditional 4-electrode scales pass an electrical current through the lower limbs only, relying heavily on statistical empirical estimations for trunk and upper body composition. In contrast, 8-electrode BIA systems utilize two tactile electrodes per limb (hand contacts and foot plates) to establish separate voltage measurement circuits and current injection paths. This enables direct, multi-segmental impedance measurement of the arms, legs, and trunk independently, dramatically improving precision and eliminating reliance on generic body mass index (BMI) formulas.
Procurement auditors should ensure the exporting factory provides ISO/IEC 17025 accredited calibration reports with traceability to international standards (such as NIST or equivalent national metrology institutes). Furthermore, for industrial applications involving high-voltage AC motors or medical-grade body composition monitors, verify CE Mark compliance, IEC 61010-1 electrical safety certifications, and EMC directive (IEC 61326) test reports to ensure electromagnetic immunity.

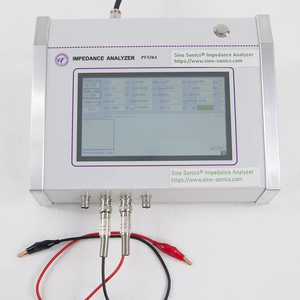

Piezoelectric ceramics operate on mechanical resonance excited by electrical signals. At resonance points, minor shifts in phase angle ($\theta$) dictate operational efficiency and heat generation. An impedance analyzer with high phase accuracy (±0.05° or better) can pinpoint maximum phase slope, mechanical quality factor ($Q_m$), and parallel resonant points. This precise characterization prevents transducer failure in medical ultrasound probes and industrial ultrasonic welders.
Yes. Recent advancements in miniaturized Direct Digital Synthesis (DDS) signal generators and ultra-fast analog-to-digital converters (ADCs) allow modern portable impedance analyzers to achieve basic measurement accuracies up to 0.1%. Handheld instruments such as the high-precision ultrasonic ceramic tester or motor impedance analyzers provide field service engineers with immediate resonance curve rendering, battery-powered operation, and rugged shock-proof casing without sacrificing critical measurement fidelity.
To ensure maximum return on investment (ROI) and minimize operational downtime, international procurement teams should follow a structured five-step evaluation process when engaging overseas manufacturers and export factories:
Determine whether your DUT (Device Under Test) requires ultra-low frequency electrochemical EIS analysis (<1 Hz) or high-speed RF sweep capabilities (>100 MHz). Avoid over-specifying bandwidth to optimize capital expenditure.
Impedance measurement accuracy depends heavily on test fixtures. Confirm that the factory provides four-terminal Kelvin test leads, SMD component test fixtures, and custom bio-impedance tactile plates with ultra-low contact impedance.
Modern production lines require seamless automation. Ensure the factory's instruments support SCPI commands via GPIB, USB, or LAN interfaces, and offer free GUI suites for data logging, Nyquist plot creation, and CSV export.
