Verified CE & ISO certified modular load systems engineered for global infrastructure, industrial logistics, and high-capacity manufacturing operations.
A rigorous technical overview of structural dynamics, hydraulic synchronization, and manufacturing capabilities powering global heavy-haul operations.
In modern infrastructure, renewable energy development, industrial automation, and mega-structure logistics, the demand for high-precision, heavy-capacity modular load solutions has reached an unprecedented scale. As global engineering procurement contractors (EPCs), project logistics managers, and manufacturing plant directors seek reliable equipment, China has established itself as the leading powerhouse for modular heavy-haul engineering and automated material handling manufacturing.
Whether navigating 1,000-ton offshore wind turbine jackets across port terminals or executing automated micro-sorting within high-speed fulfillment centers, Chinese OEM and ODM exporters offer high structural integrity, compliant safety frameworks (CE, ISO, AWS), and exceptional total cost of ownership (TCO) performance. This whitepaper analyzes the mechanical principles, technological evolutions, procurement strategies, and industry benchmarks governing contemporary modular load platforms.
Key structural shifts, digitization milestones, and green energy innovations shaping the global modular load manufacturing sector.
Traditional Power Pack Units (PPUs) rely heavily on high-displacement diesel engines. Next-generation self-propelled modular transporters are rapidly shifting toward lithium-battery hybrid and pure-electric PPUs. This transition reduces zero-emission indoor factory noise, complies with European Stage V and US Tier 4 Final environmental standards, and lowers operating maintenance by up to 34%.
Modern heavy transport platforms incorporate multi-channel CAN-bus architecture paired with IoT cloud telematics. Operators can monitor individual axle group hydraulic pressures, center of gravity shift vectors, tire wear rates, and real-time structural stress via hand-held radio remote controllers or remote telemetry consoles, preventing catastrophic rollover incidents during heavy haulage.
Global heavy logistics fleets require interchangeability. Leading Chinese exporters design hydraulic modular trailers featuring standard chassis coupling profiles compatible with European legacy models (such as Goldhofer THP/SL or Scheuerle InterComBI). This allows transport operators to combine multi-axle lines seamlessly without investing in entirely new fleet ecosystems.
Beyond heavy haul trailers, industrial modular loads encompass automated intralogistics systems. Servo-driven wheel sorting conveyors and modular steel mezzanine storage platforms are seeing hyper-adoption. The ability to assemble boltless multi-layer platforms with 500kg/m² load ratings alongside 8,000 PPH automated sorters allows e-commerce and pharmaceutical logistics hubs to scale volumetric capacity instantly.
Engineered parameter comparisons for heavy haul trailers, self-propelled transporters, rail lifters, and sorting systems.
| Equipment Category | Primary Load Capacity | Structural Material Grade | Steering / Movement Mode | Safety & QC Standard |
|---|---|---|---|---|

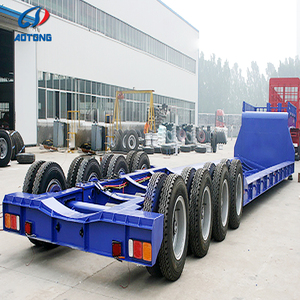

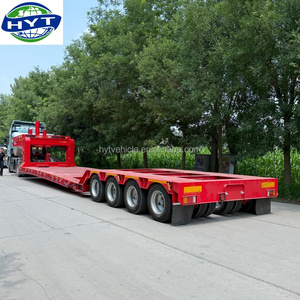

| Hydraulic Modular Trailer | 45 Tons per axle line (@ 1 km/h) | Q690 High Yield Steel Main Beam | Hydraulic Mechanical Steering (±55°) | ISO 9001, CE, AWS D1.1 Welding |

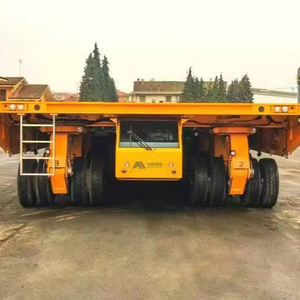

| Self-Propelled Transporter (SPMT) | 50 to 1,000+ Tons Scalable | Q960 Ultra-High Strength Steel | 360° Multidirectional Electronic Steering | CE, EN 13000 Heavy Lift Compliance |

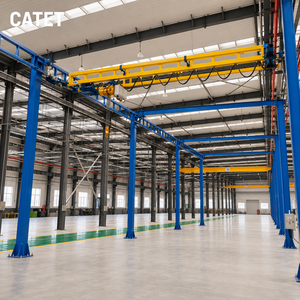

| Flexible Light Rail Lifter | 125 kg to 2,500 kg Combined | Cold-Rolled Enclosed Steel Rail | Manual / Pneumatic Ergonomic Glide | CE, ISO Overhead Safety Standard |
| Servo Wheel Sorting Conveyor | 30 kg - 60 kg per item / 8000 PPH | Modular Anodized Aluminum / Steel Frame | High-Precision Servo Steering Wheels | CE, IP54 Control Cabinet Rating |
| Heavy Steel Mezzanine System | 500 kg/m² Uniform Distributed Load | Q235B / Q355B Structural I-Beams | Static Boltless Multi-Tier Modular Structural Platform | GB 50017 Structural Steel Standard |
Why leading global EPCs, mining giants, and logistics conglomerates trust our engineering production facilities.
Our manufacturing facilities utilize high-power CNC laser cutting stations, 1,000-ton hydraulic bending presses, and Submerged Arc Welding (SAW) systems. Using prime Q690D and Q960 high-tensile structural steel, our box-girder main chassis designs withstand extreme bending moments and twisting torque under unpaved off-road conditions.
Every load-bearing weld seam undergoes 100% Non-Destructive Testing (NDT), including Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI). Before shipment, all hydraulic modular trailers and SPMT units undergo dynamic 125% overload testing, hydraulic high-pressure leak testing, and steering accuracy calibration in specialized pit facilities.
From custom deck dimensions (flatbed, drop deck, vessel bridge, excavator bed) to specialized hydraulic powerpacks and tailored warehouse mezzanine layouts, our engineering team provides complete CAD/3D FEA (Finite Element Analysis) stress simulations prior to production, ensuring guaranteed operational success.
Essential insights for procurement directors, logistics engineers, and plant operations managers.
Payload capacity is determined by multiplying the number of axle lines by the rated hydraulic axle load capacity at specific travel speeds (e.g., 45 Tons per axle line at 1 km/h, reduced to 25 Tons per line at 18 km/h), minus the deadweight of the modular platform. Hydraulic leveling cylinders distribute ground load evenly across all axles.
Yes. Our Goldhofer-type modular trailers are engineered with standardized coupling joints, hydraulic quick-connect fittings, and mechanical steering link geometries that match THP/SL series specifications, allowing seamless combination with existing European transport fleets.
All products are supplied with full technical documentation, including European CE Machine Directive Compliance, ISO 9001:2015 Quality Management certification, ISO 3834 International Welding Standard compliance, and third-party inspection reports from SGS, TÜV, or BV upon request.
Standard modular trailer configurations (4-axle or 6-axle units) typically ship within 30 to 45 days. Highly customized SPMT units with specialized PPUs or bespoke high-capacity drop-deck platforms require 60 to 75 days, including full 3D CAD modeling, FEA testing, and factory commissioning.
Request comprehensive technical engineering datasheets, 3D CAD drawings, structural FEA stress reports, and direct factory pricing for your upcoming heavy transport or warehouse automation projects.
