As electrical grids transition toward smart distribution, industrial automation advances into Industry 4.0, and high-power electric vehicle (EV) charging infrastructure rapidly expands globally, the demand for precise, reliable, and galvanically isolated current measurement systems has reached an all-time high. Modern current transducers serve as the vital sensory apparatus in variable frequency drives (VFDs), solar photovoltaic (PV) inverters, energy storage systems (ESS), battery management systems (BMS), and uninterruptible power supplies (UPS).
This industry report provides procurement professionals, system integrators, and electrical design engineers with an authoritative overview of global current transducer suppliers, manufacturing benchmarks, technological paradigms, and future procurement trends. By understanding the core distinctions between Open-Loop Hall Effect, Closed-Loop (Zero-Flux) Hall Effect, Fluxgate, and Rogowski coil technologies, decision-makers can optimize total cost of ownership (TCO) while guaranteeing operational safety and long-term signal fidelity.
Information Gain Insight: Selecting a current transducer requires evaluating more than just nominal current ratings. Engineering buyers must account for thermal drift coefficients (ppm/°C), response bandwidth (kHz to MHz), isolation withstand voltage (kV RMS), and transient impulse withstand to prevent premature sensor saturation or system downtime in high-dV/dt inverter environments.
Leading current transducer manufacturers stand out by integrating vertical production workflows—ranging from custom magnetic core annealing and precision IC packaging to automated multi-temperature calibration. Key factory competencies include:
Proprietary amorphous and nanocrystalline core fabrication minimizes hysteresis losses, magnetic memory effects, and non-linearity across extended current spans.
Reinforced insulation design achieving up to 5kV RMS dielectric isolation withstand between primary high-voltage conductors and secondary control circuitry.
Sub-microsecond response speeds (<1μs) and wide operational bandwidths (up to 200 kHz) designed for fast short-circuit protection and switching fault detection.
To assist engineering and procurement teams in specifying the optimal sensing technology for their project parameters, the table below compares the dominant current measurement paradigms utilized by premier suppliers:
| Technology Paradigm | Measurement Signal | Accuracy Range | Thermal Stability | Response Time | Target Applications |
|---|---|---|---|---|---|
| Open-Loop Hall Effect | AC, DC, Pulsed | ±1.0% to ±2.0% | Moderate (±0.05%/°C) | 3 μs - 7 μs | Cost-sensitive motor drives, battery monitors, general HVAC |
| Closed-Loop (Zero-Flux) | AC, DC, Complex | ±0.2% to ±0.5% | High (±0.01%/°C) | < 1 μs | Precision VFDs, medical imaging, solar inverters, ATE equipment |
| Split-Core Clamp Transducer | AC / DC (Hall or CT) | ±0.5% to ±1.0% | Good (±0.03%/°C) | 5 μs - 10 μs | Retrofit energy audits, smart grid monitoring, sub-metering |
| Fluxgate Sensor Technology | DC & Low Frequency AC | < ±0.05% (Ultra Precise) | Ultra-High (<5 ppm/°C) | < 0.5 μs | Laboratory power analyzers, grid standards, MRI power supplies |
| Modbus RS485 Digital Sensor | AC / DC (Processed) | ±0.5% Digital | Compensated Internal | 50 ms (Bus Cycle) | PLC automation, SCADA systems, remote IoT power cabinets |
The global current sensor market is undergoing significant structural shifts driven by electrification, renewable energy integration, and digital industrial connectivity. System architects and global procurement managers must evaluate several emerging macro trends when establishing vendor supply agreements:

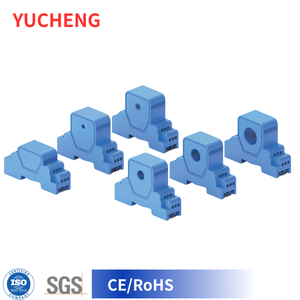

Traditional analog signal transmission (such as 0-5V or 4-20mA) is increasingly giving way to digital output interfaces directly embedded inside current transducers. Transducers integrated with RS485 Modbus RTU or CANbus protocols eliminate the need for external analog-to-digital converter (ADC) modules, reducing industrial noise susceptibility over long cable runs and facilitating direct plug-and-play connection into programmable logic controllers (PLCs) and IoT gateways.
With Silicon Carbide (SiC) and Gallium Nitride (GaN) power semiconductors enabling inverter switching speeds exceeding 100 kHz, conventional current sensors experience magnetic core heating due to high-frequency eddy losses. Tier-1 factories are redesigning core materials using high-permeability nanocrystalline ribbon alloys and ultra-fast IC amplifiers capable of accurate current tracking without thermal thermal runaway or signal distortion.

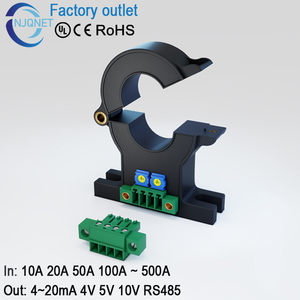

Plant operators face continuous pressure to retrofit existing electrical infrastructure for real-time power quality and energy efficiency tracking without shutting down critical operating lines. Split-core current transmitters—featuring tool-free snap-on clamping mechanisms—allow rapid installation without disconnecting primary power cables, dramatically reducing field labor costs and installation downtime.
Addressing core technical considerations during the current transducer sourcing and RFQ lifecycle:

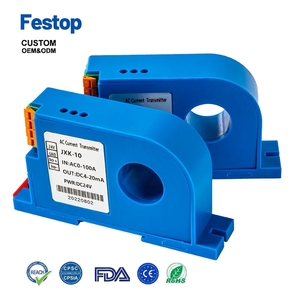

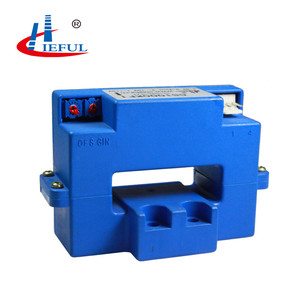

Open-loop current transducers measure magnetic flux generated by the primary current directly through a Hall element without feedback. They offer compact physical dimensions, lower weight, and attractive pricing for bulk applications. Closed-loop transducers pass a balancing current through a secondary coil to maintain zero net flux in the magnetic core. This zero-flux mechanism provides superior accuracy, immunity to external magnetic interference, wider bandwidth, and virtually non-existent temperature drift.

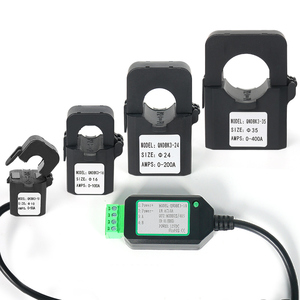

Precision split-core current transducers utilize ground, high-permeability magnetic core faces held firmly by precision spring-tensioned enclosures. Premium suppliers apply anti-corrosive treatments to the cut surfaces to ensure minimal air-gap change over decades of thermal cycling, maintaining linearity even in high-vibration industrial environments.
Standard analog output formats include 4-20mA DC current loops (ideal for long-distance noise-immune industrial loops), 0-5V DC, and 0-10V DC voltages for direct PLC analog input connection. For digital industrial systems, RS485 Modbus RTU is the industry standard, allowing multi-drop daisy chaining of dozens of sensors over a single twisted-pair cable.
Yes. True RMS output transducers and wideband Closed-Loop Hall sensors are designed to measure complex waveforms, including pulse-width modulated (PWM) inverter outputs and SCR phase-controlled loads, accurate to specified crest factors. It is critical to select a unit rated for True RMS if harmonics or non-sinusoidal currents are present in the circuit.
Galvanic isolation protects low-voltage control microprocessors, DSP units, and human operators from high primary system voltages (e.g., 600V to 1500V DC solar arrays or EV battery banks). Transducers verified for 3kV to 5kV AC isolation ensure compliance with global safety standards such as IEC/EN 61010-1 and UL 508.
